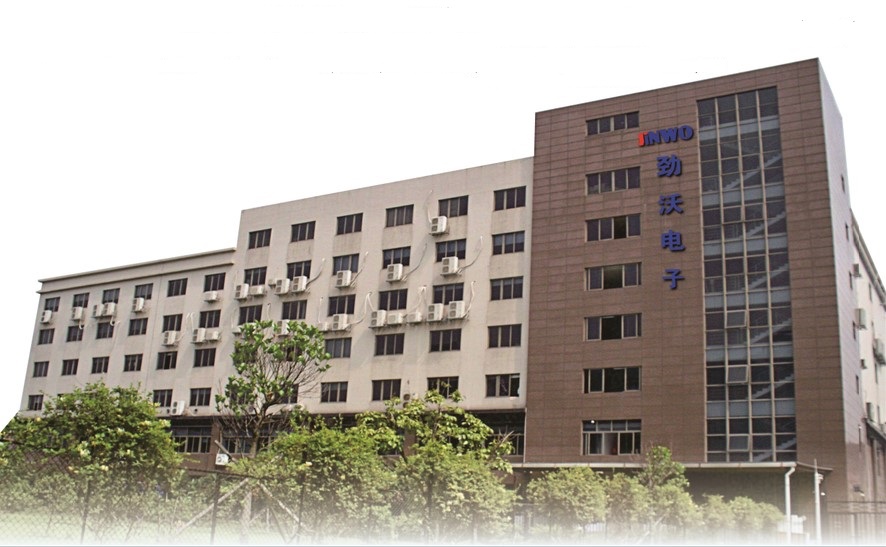

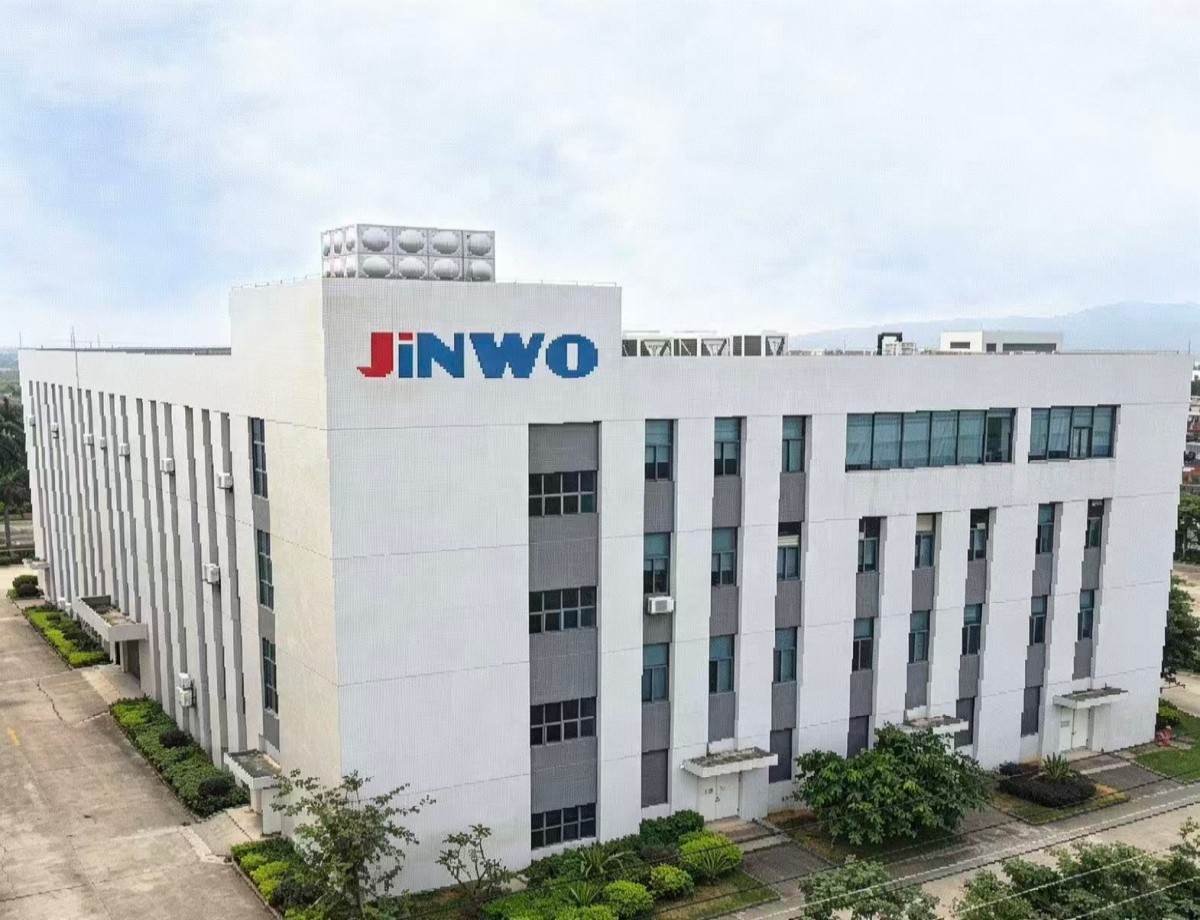

珠海市劲沃电子科技有限公司成立于2015年，是一家专注于医疗设备电池研发、设计与制造的 国家高新技术企业。
公司始终秉承“安全电池，精准护航”的理念，致力于为全球医疗设备制造商提供安全、可靠、高效的电池定制化解决方案。
深耕医疗电池领域，10年行业积淀，公司通过ISO13485、ISO9001医疗器械质量管理体系认证。
产品符合UL、CB、IEC62133、UN38.3等国际标准，为医疗设备提供安全可靠高效的电能供应。
Zhuhai Jinwo Electronic Technology Co., Ltd. is a national high-tech enterprise specializing in the research, design, and manufacturing of batteries for medical devices, established in 2015.
We always adhere to the concept of "Safe Batteries, Precise Support." The company is committed to providing safe, reliable, and efficient customized battery solutions for global medical device manufacturers.
With a decade of expertise in the medical battery industry, the company has obtained ISO13485 and ISO9001 certifications for medical device quality management systems.
Our products comply with international standards such as UL, CB, IEC62133, and UN38.3, ensuring safe, reliable, and efficient power supply for medical devices.
产品描述•
本图涵盖了劲沃公司一系列标准的智能锂离子电池，这些电池可用于众多便携式设备。这些电池的智能特性在于，它 们能够通过 SMBus v1.1（智能电池管理系统）实时向主机 设备和充电器传输SOC（荷电状态）和 SOH（健康状态）数 据。这些电池由圆柱形 INR18650、3.6V 电池以串联和并联 方式组合在一个 UL-94 V-0 级别的 ABS外壳中，并配有行业 标准的可拆卸连接器，采用即插即用设计，以提供所需的放电 备用电源。我们的电池管理系统采用最先进的SHA-1 加密系统 。采用了最新一代的专利阻抗跟踪技术，我们的电池管理系统 能够精确测量电池的可用电量，精度高达1%，且贯穿电池的整 个使用寿命。
关键特性 • Key Features •
| 可直接安装的设计 | Ready to fit design |
| 无需额外开发成本 | No extra development cost |
| 已通过冗余安全标准测试和认证 | Tested & certified to redundant safety standards |
| 符合 SBS v1.1 标准的智能电池系统 | Smart battery system compliant to SBS v1.1 |
| JEITA 充电配置文件 | JEITA charging profile optimization |
| 符合行业标准的 5 针连接器 | Industry standard 5 pin connector |
| 支持 SMBus v1.1 通信协议 | SMBus v1.1 communication support |
| 4- 5 段式 LED 电池电量（SoC）指示灯 | 4-5 Segment LED State of Charge(SoC) indicator |
| UL-94 V-0 级阻燃 ABS 外壳 | UL-94 V-0 rated ABS enclosure |
| ESD保护装置，最高可达8 kV | ESD protection up to 8kV |

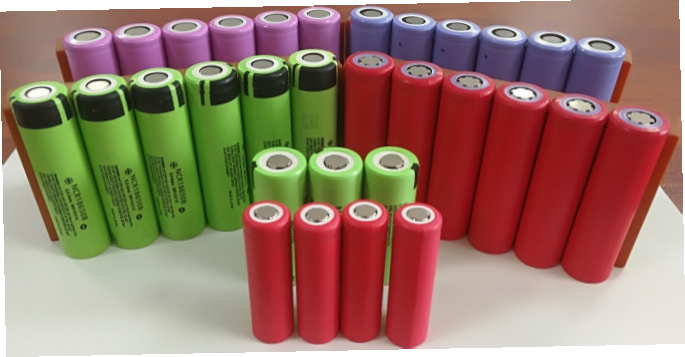

| 通过 UL 认证的 INR-18650 锂离子电池 | UL certified INR-18650 Lithium ion cells |
| 采用SHA-1 加密系统防止抄袭 | SHA-1 cryptosystem to prevent plagiarism. |
Product Description •

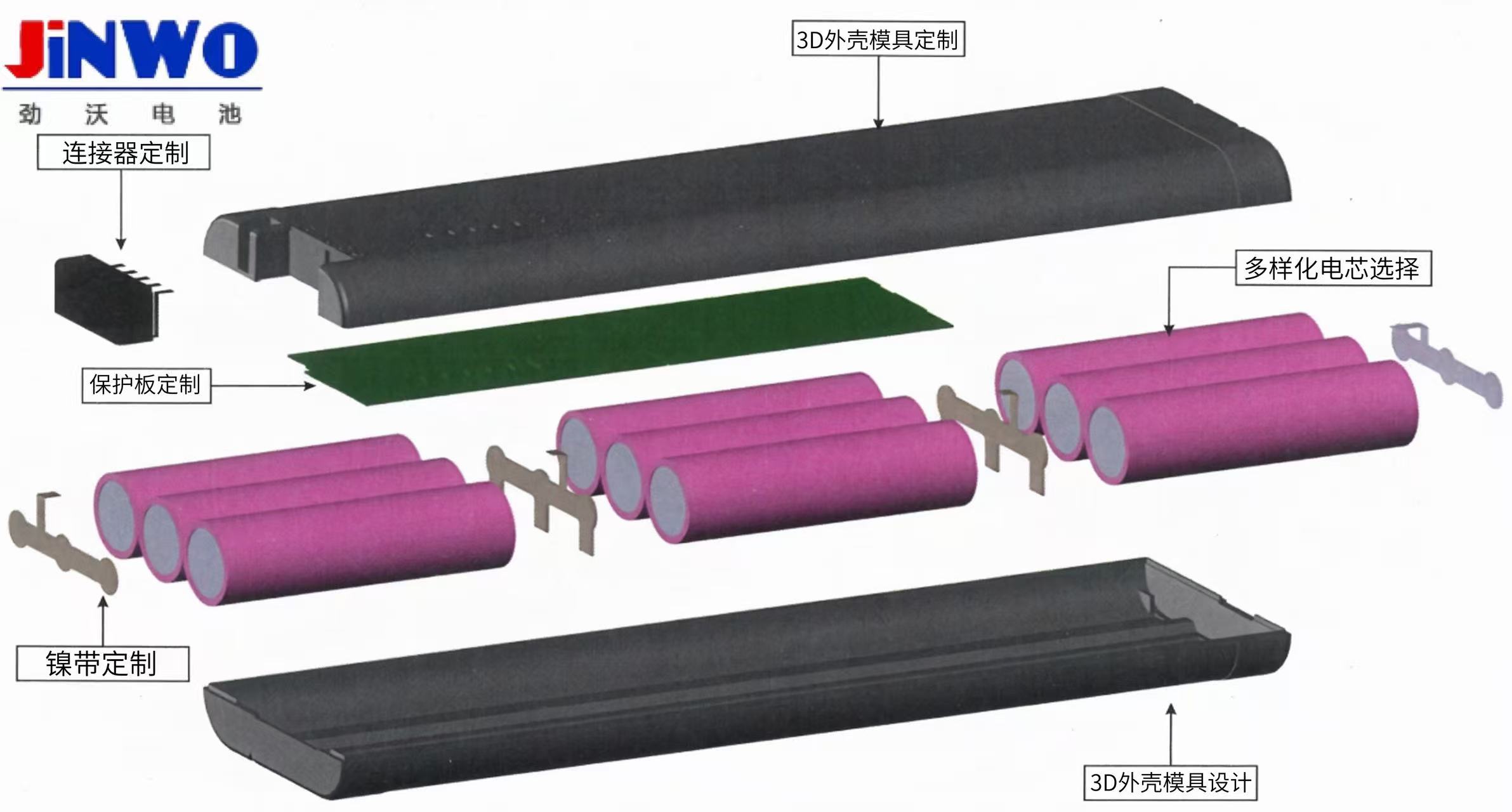

This catalogue covers a broad list of standard smart Lithium ion batteries from Jinwo which can be used in anumerous portable equipments. The smart feature of these batteries are that they can communicate real timeSOC & SOH data to host device as well as to charger, on SMBus v1.1 (Smart Battery Management System).These batteries are comprises of sealed cylindrical INR18650,3.6V cells in series and parallel array in a UL-94 V-0rated ABS enclosure with industry standard detachable connector, a plug & play design to deliver required discharge backups. Using the most advance SHA-1 cryptosystem. Due to next generation patented impedance track™ technology our BM accurately measures available charge in batteries to an accuracy of 1% over the lifetime of the battery

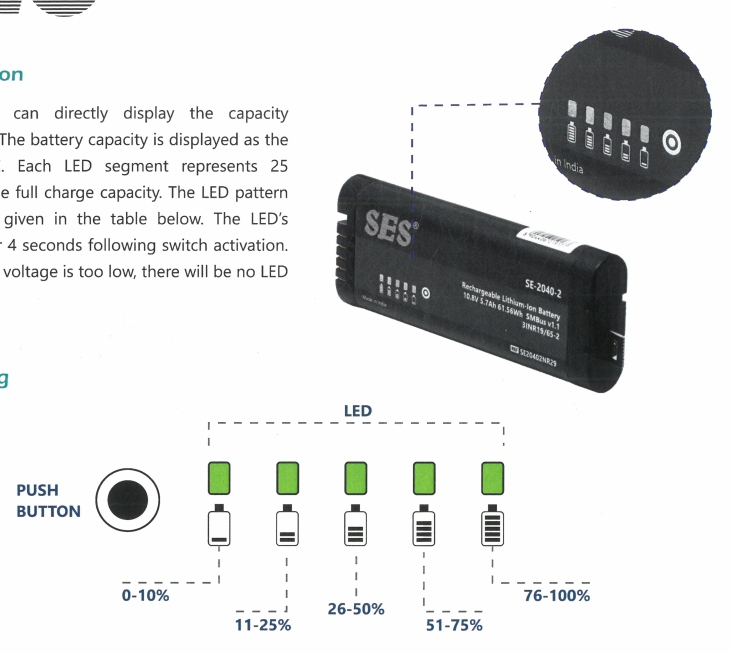

LED 指示 •
电池可直接显示容量信息。电池容量以相对荷电状态（SOC）显示。 每个 LED 段代表满电容量的 25%。LED 模式定义见下表。开关激活 后，LED 亮起 4 秒。如果电池电压过低，则无 LED 指示。LED指示 可以根据客户需求设定。
智能电池：SMBus 和 SBS 参数 •
电池配备了微处理器和相关电路，用于与外部主设备和/或智能电池器进行通信，符合系统管理总线规范 (SMBus Rev1.1) 和智能电池数据规范 (SBS Rev1.1)。SMBus 接口符合 SBS 规范 v1.1。电池组包括一个简单的双向串行数据接口。使用该 接口的主处理器可以访问组的各种寄存器。
LED Indication •
The battery can directly display the capacityinformation. The battery capacity is displayed as therelative SOC. Each LED segment represents 25percent of the full charge capacity. The LED patterndefinition is given in the table below. The LED's illuminate for 4 seconds following switch activation If the battery voltage is too low, there will be no LEDindication. LED indication can be set according to customer needs.
Smart Battery: SMBus and SBS Parameters •
The battery is fitted with a microprocessor and associated circuitry for communication with an external host device and/or smart battery charger to System Management Bus Specification(SMBus Rev1.1)& Smart Battery Data Specification(SBS Rev1.1). SMBus Interface complies with SBS Specification v1.1. The battery pack includes a simple bi-directional serial data interface. A host processor using the interface can access various battery pack registers.

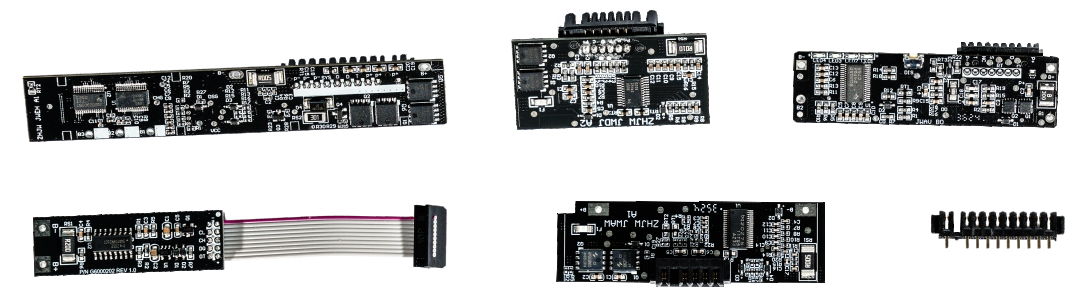

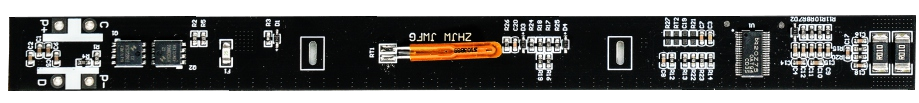

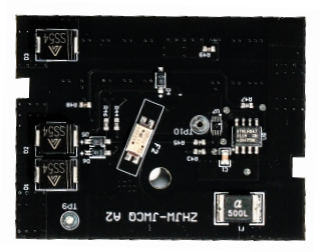

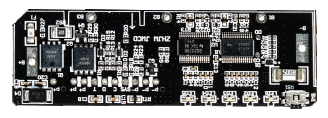

锂电池保护板•
保护板具有过流、过温、欠压、过充、短路等保护功能，避免因过放电或过充电造成电池寿命缩短，也避免了重复关断损坏保护板的可能，更可以避免因超温或短路对电芯造成不可逆的损坏,延长了电池使用寿命,更提高了 电池使用的安全性。
智能锂电池保护板优势•
1：对电池的容量能够精确的统计，充放电误差达到1％；
2：可以通过 MCU 对 IC数据进行读取以显示电池的工作状态；
3：在没有数据读取的情況下可以用 LED 来显示电池的剩余容量;
4：可以对冲击电流和过流保护进行分开设置，而且对过充、过放、过流进行多重安全设置，增加电池的安全特性;
Lithium Battery Protection Plate•
The protecfion board has the protection funcfions of over-current, over temperature, under voltage, overcharge and short-circuit, so as to avoid shortening the battery life due to over discharge or overcharge, avoid the possibility of damaging the protection board repeatedly, and avoid irreversible damage to the cell caused by over temperature or short circuit, prolong the service life of the battery and improve the safety of the battery.
Advantages of intelligent lithium battery protection board•
1:The capacity of the battery can be accurate statistics, charging and discharging error of 1%.
2: You can read the IC data through the MCU to display the working status of the battery.
3: In the absence of data to read the case with LED to show the remaining capacity of the battery.
4: The impact current and the over current protection can be separately arranged, and the over charge, over discharge.over current and multiple safety settings are arranged, and the safety characteristic of the battery is increased.
为什么选择我们？
深耕医疗电池领域：聚10年行积淀,专注医疗设备电池研发与制造，产品覆盖呼吸麻醉，影像挣断,生命支持，治疗设备等多个医疗场景。
追求卓越的性能和高品质的产品：全系列医疗电池模组自研自产，核心能力自主可控，帮你打造不可替代的客户竞争力。
一站式医疗电池方案供应商：全流程技术支持，客户遇到各类技术问题，我们团队第一时间配合解决。
优质售后保障：拥有多语言跨文化服务团队，提供1年标准质保，全程一对一专属服务。
